Traditional basket presses

Winegrowers Supplies - Traditional basket presses - up to 480 litres capacity

Italian basket presses:-

These can operate at high pressure so are particularly suitable for apples and stoned fruit.
A press sack is not included but available at extra cost; prices are below.

Hand operated, ratchet system: extremely strong, prices at August 2023:-

      11 litres (20 cm diameter x 35 cm, 20 kilos), 263.00 Euros
      20 litres (25 cm diameter x 40 cm, 30 kilos), 294.00 Euros

      32 litres (30 cm diameter x 45 cm, 40 kilos), 385.00 Euros
      48 litres (35 cm diameter x 50 cm, 65 kilos), 469.00 Euros

      69 litres (40 cm diameter x 55 cm, 77 kilos), 564.00 Euros
      95 litres (45 cm diameter x 60 cm, 125 kilos), 720.00 Euros
    127 litres (50 cm diameter x 65 cm, 135 kilos), 815.00 Euros

Electro-hydraulic: 0.75 hp motor (220 or 380 volt at the same price), up to 350 bar (357 kilograms/cm²) working pressure:-

130 litres (50 cm diameter), 3260 Euros
210 litres (60 cm diameter, piston is 90 x 750 mm), 3643 Euros

Electro-hydraulic with removable trolley (painted red). Juice collection tray in stainless steel.
0.75 hp motor (220 or 380 volt at the same price), up to 350 bar (357 kilograms/cm²) working pressure:-

wood basket (outside rings in stainless steel):-
   210 litres (60 cm diameter x 75 cm, 410 kilos, 135 x 100 x 225 cm, piston is 90 x 750 mm), 3656 Euros
   310 litres (70 cm diameter x 85 cm, 570 kilos, 145 x 120 x 225 cm), 4638 Euros
   480 litres (80 cm diameter x 95 cm, 895 kilos, 155 x 125 x 250 cm), 6137 Euros

or stainless steel basket:-
   210 litres (60 cm diameter x 75 cm, 410 kilos, 135 x 100 x 225 cm, piston is 90 x 750 mm), 4289 Euros
   310 litres (70 cm diameter x 85 cm, 570 kilos, 145 x 120 x 225 cm), 5707 Euros
   480 litres (80 cm diameter x 95 cm, 895 kilos, 155 x 125 x 250 cm), 7836 Euros

A second trolley with ss basket is available at extra cost:-
for 310 litres (70 cm diameter), 2535 Euros
for 480 litres (80 cm diameter), 3514 Euros

Intermediate laths made of thick woven twine, for faster juice run off, one is recommended:-
for the 130 litre press: 62 Euros
for the 310 litre press: 75 Euros

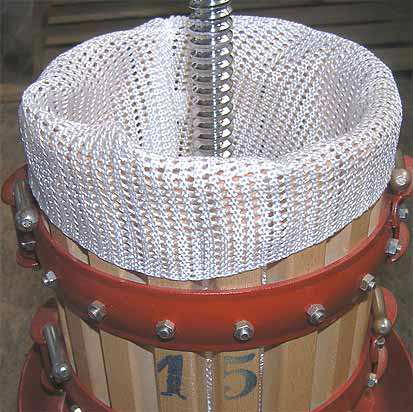

Polypropylene press sacks, for clearer juice run off:-
                                    11 litre, £31
                                    20 litre, £35
                                    32 litre, £39
                                    48 litre, £44
                                    69 litre, £50
                                    95 litre, £56
                                  127 litre, £67
                                  210 litre, £122
                                  310 litre, £244
                                  480 litre, £290

Prices shown are exclusive of Vat.
Delivery will need to be charged at cost.
