Variable Capacity tanks, for fermentation and storage, are 'always full' due to the separate pneumatically sealed inner lid which can be set at any height within the tank;
during fermentation it is set about 50 mm above the liquid surface, at other times the lid is lowered to rest on the liquid.

The pneumatic sealing tube is pumped up (to 0.5 bar) with a small hand pump rather like a bicycle tyre pump.
When the sealing tubes are new they are a very tight fit, difficult to stretch around the lid. With use they stretch gradually and become progressively easier to fit.
A list of tube sizes and prices.

Volume calculations, measurements should be accurate to 0.1 cm :-
1. Before first using a tank:-
a. calculate the volume in litres per cm height = surface area (π r2, where π = 3.14159, r = radius in cm) divided by 1000.
b. calculate the total volume in litres = internal height at the side of the tank (in cm) x the volume in litres per cm height; plus (if the tank has a concave base) the volume of the concave base, measured by pouring in water from a measuring jug.
2. Calculating the volume of liquid in the tank:-
use a tape measure (with the end lowered to touch the liquid surface) to measure the height of the liquid surface below the top of the tank. Measure down on two opposite sides, and take an average of the two heights, as the tank may not be standing quite horizontally. Multiply this average height by the volume in litres per cm height, and subtract the result from the total volume.

Note: cleaning the tanks.

New Variable Capacity tanks:-

Vertical cylinders with flat bottom or concave bottom; flat bottom tanks can be placed on a small pallet, which can be moved around with a pallet-truck.
Internal cooling can be fitted through the lids of all types:-

IND Italian, excellent value:-


 flat bottom, with one 1" bsp female-thread outlet,
      except for the 100 litre which is " bsp:-

      100 litres (470/450 mm diameter, 800 mm high)   246
      230 litres (640/620 mm diameter, 820 mm high)   320
      330 litres (640/620 mm diameter, 1160 mm high)  395
      530 litres (770/750 mm diameter, 1270 mm high)  500
      640 litres (770/750 mm diameter, 1520 mm high)  640
      800 litres (960/940 mm diameter, 1220 mm high)  695
    1000 litres (960/940 mm diameter, 1520 mm high)  850

 optional stainless steel stand:-
               for 470 mm diameter; 100 litres,  105
               for 640 mm diameter; 230 + 330 litres,  125
               for 770 mm diameter; 530 + 640 litres,  135
               for 960 mm diameter; 800 + 1000 litres,  160

 optional stainless steel dust cover lid:-
               for 470 mm diameter; 100 litres,  38
               for 640 mm diameter; 230 + 330 litres,  58
               for 770 mm diameter; 530 + 640 litres,  63
               for 960 mm diameter; 800 + 1000 litres,  75

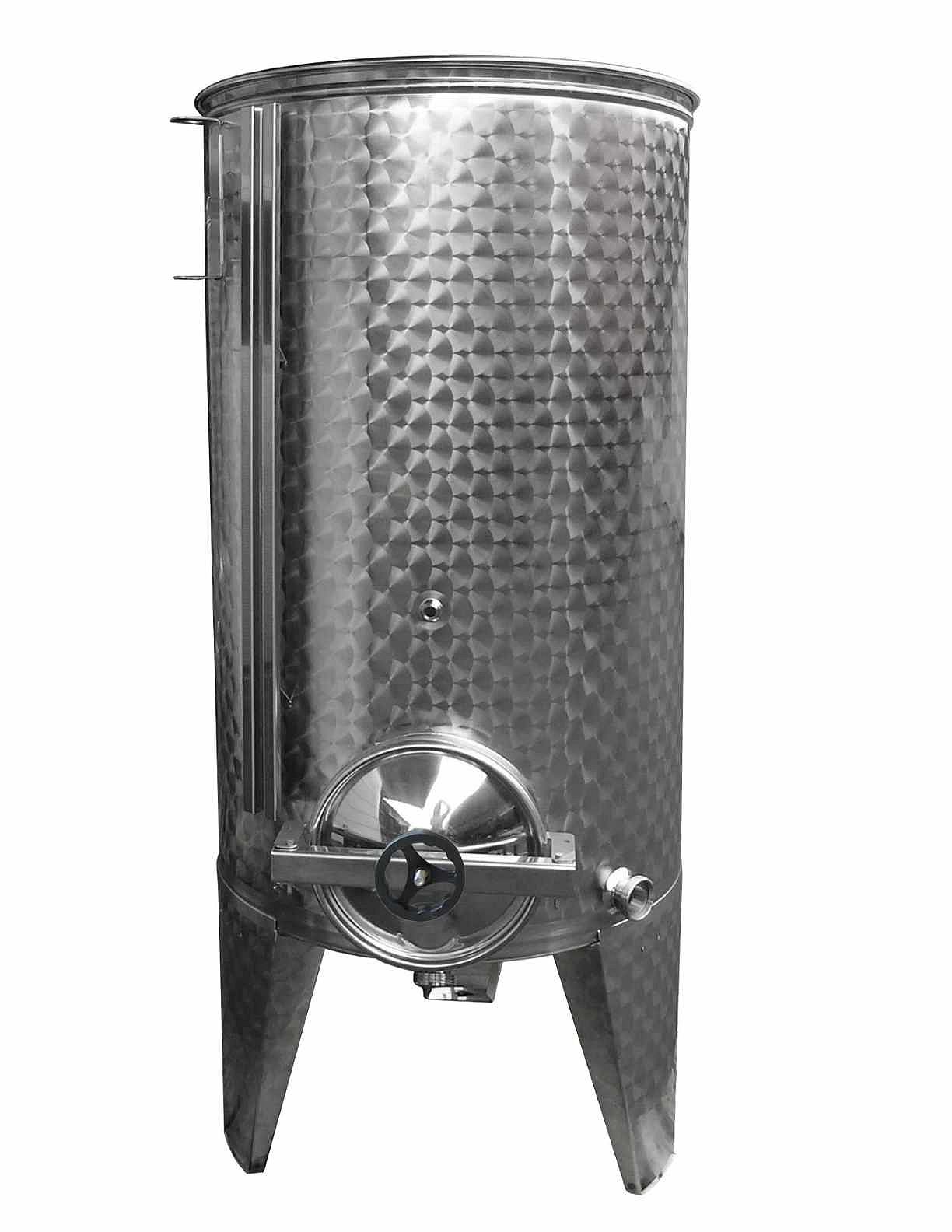

with three stainless steel welded-on legs, a DIN40 female-thread racking outlet, a concave bottom with V-channel to DIN40 female-thread final-drain outlet, and with level/sight gauge and sampling tap.

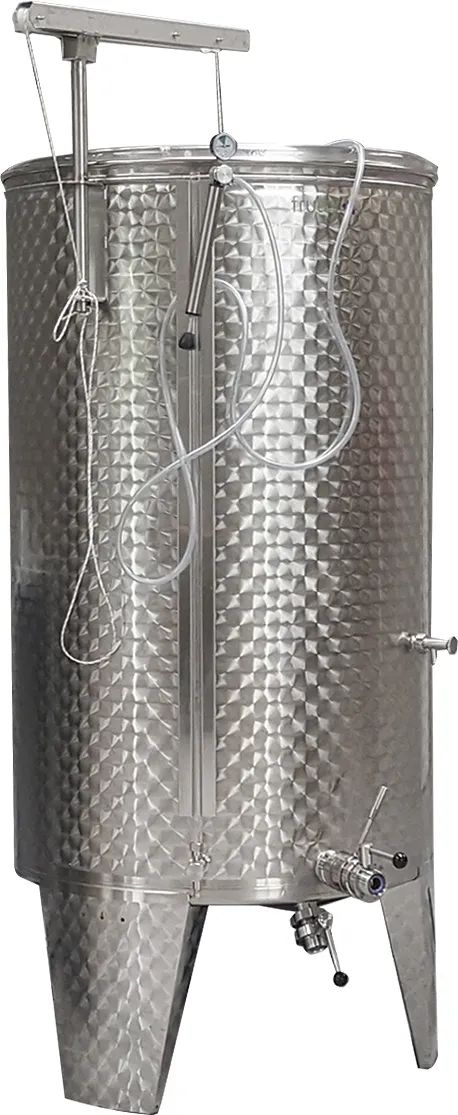

Also a crane to lift the lid (adds 350 mm to the height) with 1000 litre and 1250 litre:-

      530 litres (770/750 mm diameter, 1720 mm high),  890
    1000 litres (960/940 mm diameter, 1970 mm high)1240
    1250 litres (1020/1040 mm diameter, 1970 mm high),  1470

   optional rectangular man-way door (430 x 320 mm) at bottom, for red wine etc, 440 extra

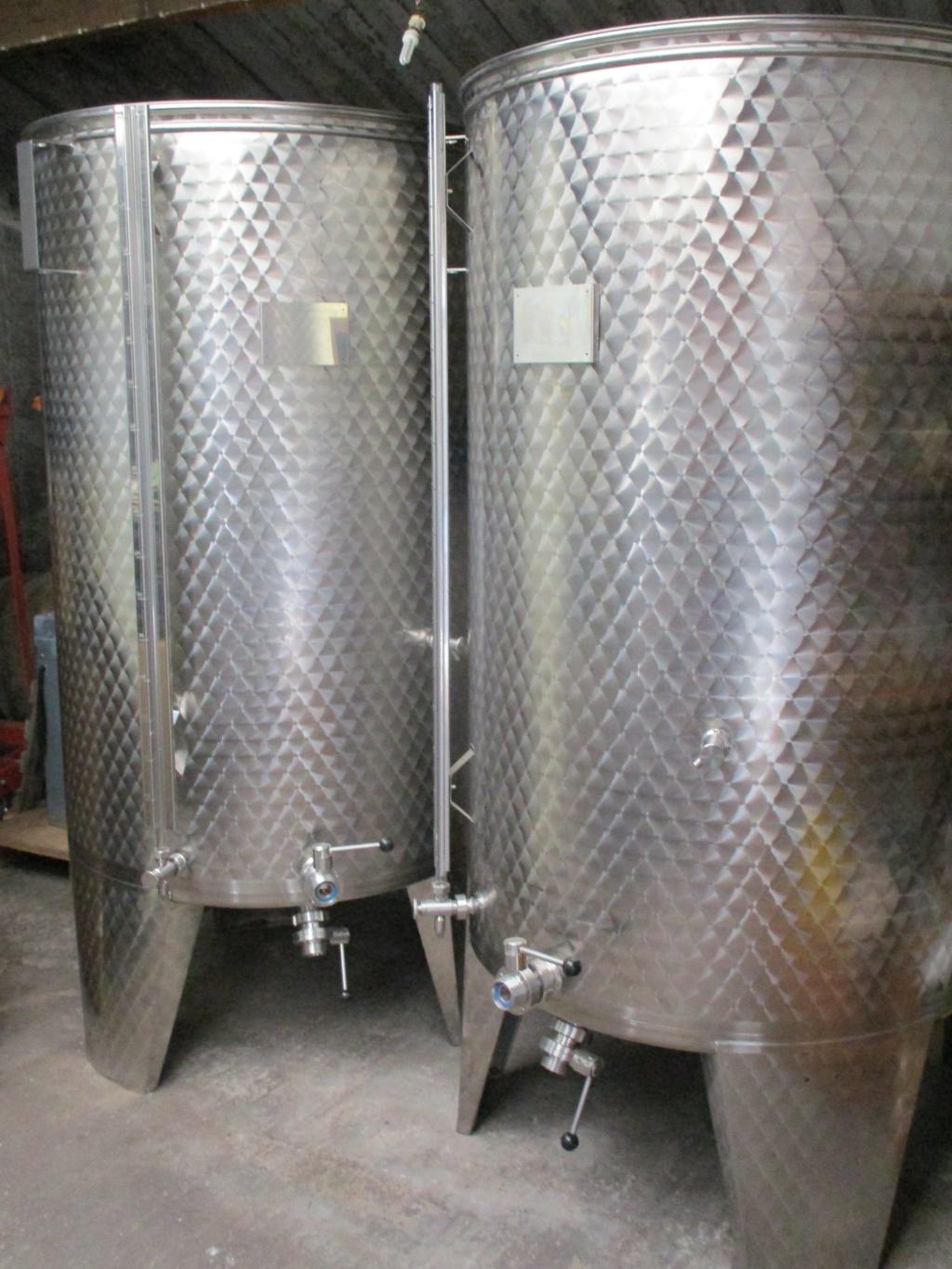

In my winery I changed from Speidel tanks to these, I find that the size of the 1000 litre tank is very convenient to work with.

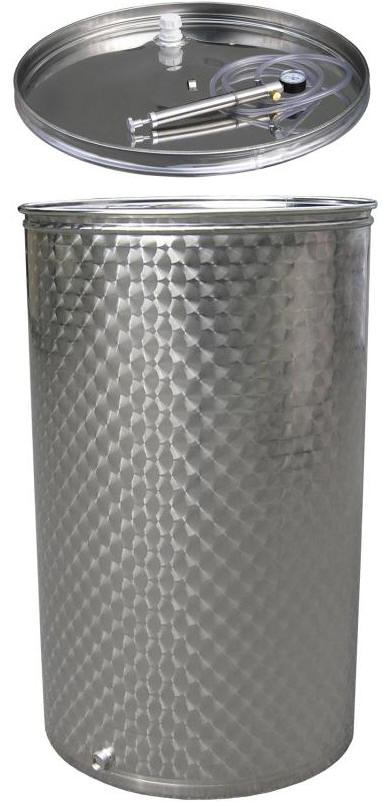

or ECO variable capacity flat-bottom stainless steel tanks, 0.7 mm thick stainless steel, marbled finish, with pneumatic seal inner floating lid:-



    300 litres (620/600 mm diameter, 1000 mm high) " bsp female outlet, 345

    stainless steel dust cover lid is available at extra cost, 33

or Juice Containers, with just a dust cover lid, instead of the inner floating lid:-



     50 litres (385/365 mm diameter, 500 mm high) " bsp female outlet, 125
     75 litres (
385/365 mm diameter, 750 mm high) " bsp female outlet, 139
   100 litres (
435/415 mm diameter, 750 mm high) " bsp female outlet, 159

   150 litres (530/510 mm diameter, 750 mm high) " bsp female outlet, 195
   200 litres (
620/600 mm diameter, 750 mm high) " bsp female outlet, 229
   300 litres (
620/600 mm diameter, 1000 mm high) " bsp female outlet, 269

   optional painted steel stands:-


    for 385 mm diameter, 35
    for 435 mm diameter, 37
    for 530 mm diameter, 40
    for 620 mm diameter, 50

or EN Italian flat-bottom stainless steel tanks, marbled finish:-

EN STE/P variable capacity, ECO 0.7 mm thick stainless steel, with pneumatic seal inner floating lid:-



   100 litres (440 mm diameter, 700 mm high) " bsp female outlet, 244

   150 litres (532 mm diameter, 750 mm high) " bsp female outlet, 304
   200 litres (
532 mm diameter, 1000 mm high) " bsp female outlet, 346
   300 litres (
636 mm diameter, 1000 mm high) " bsp female outlet, 390
   400 litres (
654 mm diameter, 1250 mm high) " bsp female outlet, 445
   500 litres (
724 mm diameter, 1250 mm high) " bsp female outlet, 520
   600 litres (
795 mm diameter, 1250 mm high) " bsp female outlet, 560

with 1.0 mm thick stainless steel:-
     800 litres (
928 mm diameter, 1250 mm high) 1" bsp female outlet, 759
   1000 litres (
1020 mm diameter, 1250 mm high) 1" bsp female outlet, 872

with 1.2 mm thick stainless steel:-
   1500 litres (
1150 mm diameter, 1500 mm high) 1" bsp female outlet, 1299
   1850 litres (
1274 mm diameter, 1500 mm high) 1" bsp female outlet, 1499

   optional stainless steel stands: prices are further down this page.


or EN STE/O juice containers, ECO 0.7 mm thick stainless steel, with just a dust cover lid, instead of the inner floating lid:-



   100 litres (440 mm diameter, 700 mm high) " bsp female outlet, 159

   150 litres (532 mm diameter, 750 mm high) " bsp female outlet, 195
   200 litres (
532 mm diameter, 1000 mm high) " bsp female outlet, 239
   300 litres (
636 mm diameter, 1000 mm high) " bsp female outlet, 279
   400 litres (
654 mm diameter, 1250 mm high) " bsp female outlet, 329
   500 litres (
724 mm diameter, 1250 mm high) " bsp female outlet, 389
   600 litres (
795 mm diameter, 1250 mm high) " bsp female outlet, 426

   optional stainless steel stands:-



  EN stainless steel stands:-

    for 440 mm diameter; 100 litres,  66
    for 532 mm diameter; 150 or 200 litres,  72
    for 636 mm diameter; 300 litres,  87
    for 654 mm diameter; 400 litres,  94
    for 724 mm diameter; 500 litres,  103
    for 795 mm diameter; 600 litres,  124
    for 928 mm diameter; 800 litres,  137
    for 1020 mm diameter; 1000 litres,  151
    for 1150 mm diameter; 1500 litres,  124
    for 1274 mm diameter; 1850 litres,  228

Spare parts: white plastic cap set for floating lid of Italian VC tanks, fits a 44 mm diameter hole,
                     bulkhead fitting with closing cap and 2 seals, 9.50

   Speidel made in Germany:-

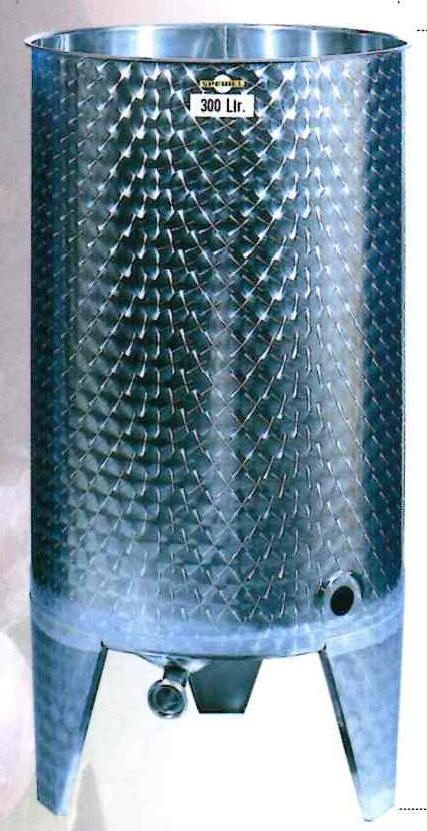

Type FO: concave bottom and V-channel to DIN40 or DIN50 threaded bottom outlet, three legs, hole for Gr.37/70 flap-valve (or DIN40 / DIN50 thread):-

  530 litres (820 mm diameter, 1361 mm high)    756 Euros + delivery from Germany at cost
  675 litres (820 mm diameter, 1620 mm high)    802 Euros + delivery from Germany at cost
  910 litres (820 mm diameter, 2109 mm high)   1019 Euros + delivery from Germany at cost

1100 litres (1000 mm diameter, 1791 mm high)  1225 Euros + delivery from Germany at cost
1600 litres (1200 mm diameter, 1831 mm high)  1608 Euros + delivery from Germany at cost
2200 litres (1400 mm diameter, 1841 mm high)  1955 Euros + delivery from Germany at cost
3300 litres (1400 mm diameter, 2579 mm high)  2485 Euros + delivery from Germany at cost

2850 litres (1600 mm diameter, 1873 mm high)  2675 Euros + delivery from Germany at cost
3850 litres (1600 mm diameter, 2361 mm high)  3190 Euros + delivery from Germany at cost

6100 litres (1800 mm diameter, 2871 mm high)  4200 Euros + delivery from Germany at cost
7400 litres (1800 mm diameter, 3371 mm high)  4496 Euros + delivery from Germany at cost

and many other volumes, up to 25,000 litres, please ask for prices.

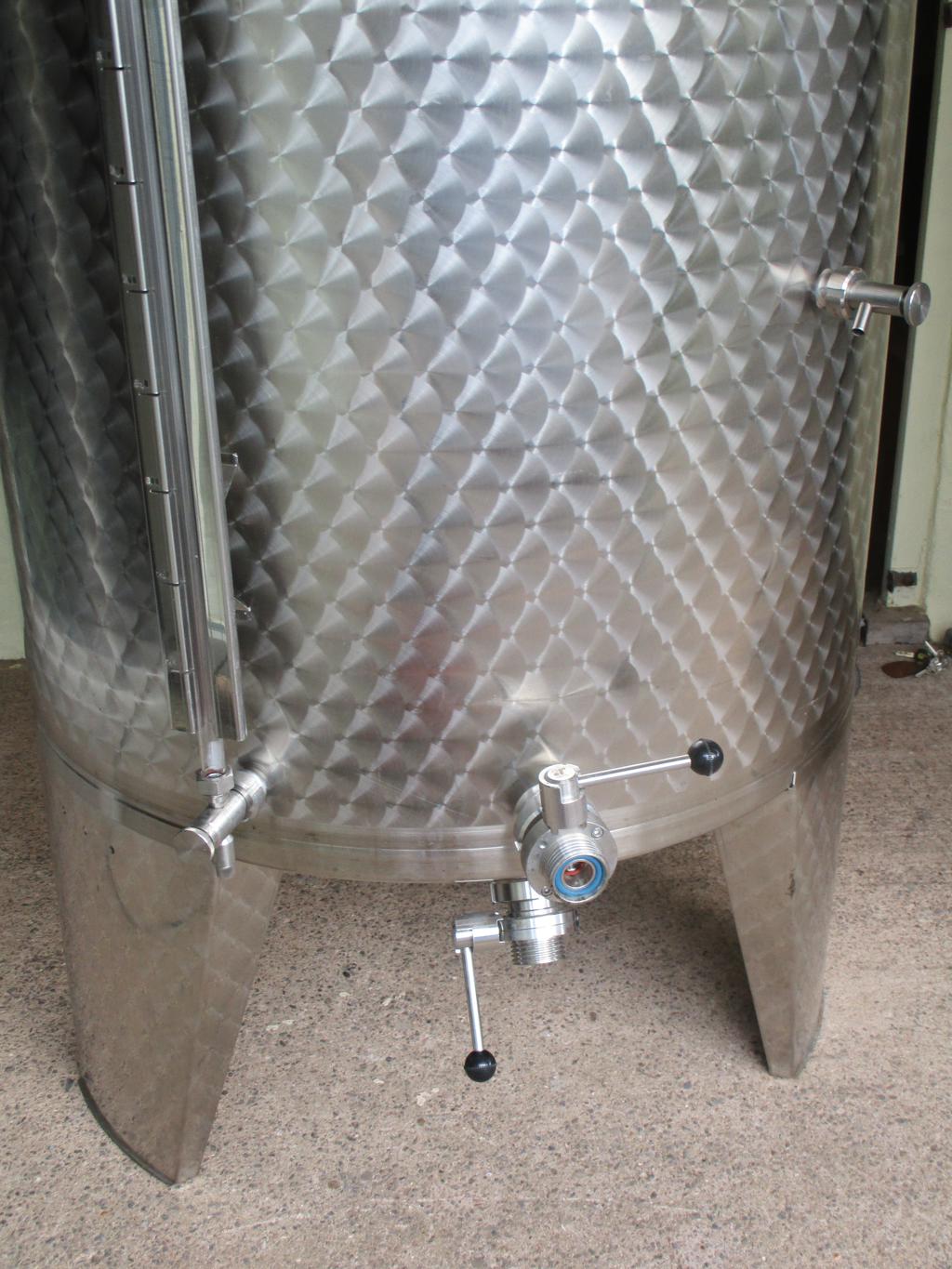

The above Speidel prices do not include fittings:-

stainless steel butterfly-valve with sealing cap: DIN40 to DIN40 or 32-Mainz, 130 Euros
stainless steel butterfly-valve with sealing cap: DIN50 to DIN50 or DIN40 or 32-Mainz or 1" bsp, 130 Euros
stainless steel Gr.37/70 flap-valve with sealing cap, 80 Euros

level/sight-gauge, 159 Euros upwards according to size
sample tap, 40 Euros
temperature gauge housing, with analogue thermometer, 89 Euros

crane to hoist lid (necessary for 1200 mm diameter or larger):-
   155 Euros for 1200 mm diameter,
   210 Euros for 1400 mm diameter,
   257 Euros for 1600 mm diameter,
   297 Euros for 1800 mm diameter,
The crane is the stainless steel arm (which fits in a socket and swings in an arc), with a pulley wheel over which a thick cord runs.
There is an optional stainless steel winch, 260 Euros extra. You need one for 1400 mm diameter or larger tanks, where the lids are very heavy:



man-way door (420 x 320 mm, Oval for white wine), 210 Euros
man-way door (310 x 420 mm, Rectangular for red wine), 505 Euros
cooling jacket, with two 1" bsp male threads, various sizes.

Adjustable height feet, 26 Euros for each; 3 or more are needed.

Speidel spare parts:-
orange plastic closing cap for floating lid of Speidel variable capacity tanks, 4.50
white sealing ring to fit inside the cap, 1.00
complete orange plastic cap set (bulkhead fitting with closing cap and 2 seals), 9.50

Replacement pneumatic sealing tubes, 320mm to 2100mm

replacement air-pump complete with pressure gauge, 29.00
                        pressure gauge only, 9.00
replacement air hose (2 metres long), 2.50

Prices shown are exclusive of Vat.
Delivery will need to be charged at cost.
