Beer keg washing and filling

Winegrowers Supplies - Washers + Counter-pressure fillers for beer kegs

Small kegs (5 litres) can be filled on a CP bottle filler, but for large kegs (10 to 50 litres) a separate dedicated keg filler is necessary.
The beer will already be stored under pressure, so there is no need for a pump.

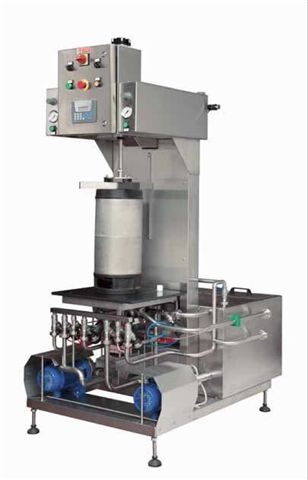

CEM: model LRK:-

For washing and filling of kegs (only up to 30 litres) by an automatic system with manual positioning of the keg.

Equipped with 3 tanks (AISI 304 stainless steel) for containment of the washing solutions, one of these (caustic solution) is electrically heated and insulated.
The tanks have level control devices for the automatic loading of water and machine stop in case of solution absence.

Safety device for starting of the washing cycle only with the keg on the machine and correctly positioned, device for the stopping of the machine in case of lack of air or CO2.

Selector for the choice of the program: 1 = washing, 2 = washing and filling.

Selector for the choice of the time of washing in comparison to the kegs capacity.

Device for the control of the final loading CO2 pressure (adjustable min. 0.7 Bar, max 2.5 Bar).

Model:

Electrical power:
Electrical supply needed:

Air supply needed:

Height:
Width:
Length:

Weight:

Washing rate:-

30 litre kegs
20 litre kegs
10 litre kegs

Washing + filling rate:-

30 Litres kegs
20 Litres kegs
10 Litres kegs

Prices:
with manual keg opening:

Option: automatic opening of keg by slide joint:
or by bayonet joint:

LRK1

5 kW
400V/50Hz, 3Ph+N+E

6 Bar

1020 mm
1050 mm
1000 mm

250 kilos

10 per hour
12 per hour
14 per hour

6 per hour
8 per hour
11 per hour

13,720 Euros

+ 1045 Euros
+ 870 Euros

LRK2

6 kW
400V/50Hz 3Ph+N+E

6 Bar

1020 mm
1250 mm
1000 mm

280 kilos

20 per hour
24 per hour
28 per hour

12 per hour
16 per hour
22 per hour

16,800 Euros

+ 2085 Euros
+ 1740 Euros

Delivery time 13 weeks from order.

or TASK 'state-of-the-art' model:-

19,200 Euros

for steel kegs between 20 and 50 litres,
fully automatic sterilising and filling at 15 - 25 kegs per hour.

The machine performs a multi-stage cleansing of the keg - all controlled by electronic circuit, the operator simply loads and unloads the keg:-

1. discharge with sterile air,
2. pre-wash with water,
3. emptying with sterile air,
4. washing with alkaline detergent solution, re-cycling solution,
5. rinsing with water,
6. washing with acid solution and re-cycling solution,
7. rinsing with water,
8. emptying with nitrogen,
9. steaming (max 120 C) for perfect sterilisation,
10. emptying with nitrogen,
11. pressurising with nitrogen,
12. filling,
13. washing the keg's mouth..

Size: 700 x 800 x 2100 mmH,
3-phase 380 volt electrics,
a 6 bar air supply is required, and a cylinder of nitrogen.

Prices shown are exclusive of Vat.
Delivery will need to be charged at cost.
